Technical Details

Tubbo transparent enclosures modular animation

What is a Tubbo?

TUBBO® is a floor-independent shelter with a sophisticated design and modular components.

Tubbo is designed to withstand extreme wind and snow loads.

Create your own adaptable and transformable outdoor space.

Tubbo transparent enclosures parts and accessories

Dimensions

  • Length: Modules from 2.06 m to infinite, in multiples of 2.06 m.
  • Height: exterior 2.82 m; interior 2.72 m.
  • Aisle width: 2.8 m at ground level; 3.59 m at the apex of the arch.
  • External width: 3.05 m at ground level.
  • Weight: 295 kg per linear metre.
Tubbo measurements

Accessories

Doors and windows, heating and cooling, sockets and more!

Click here to see them all

Safety data

  • Snow: Snow accumulation up to 0.5m. Upgradable to 1m in extreme climates.
  • Wind: Resistant up to 120km/h. Upgradable to 200 km/h.
  • Fire: Fire resistant materials.

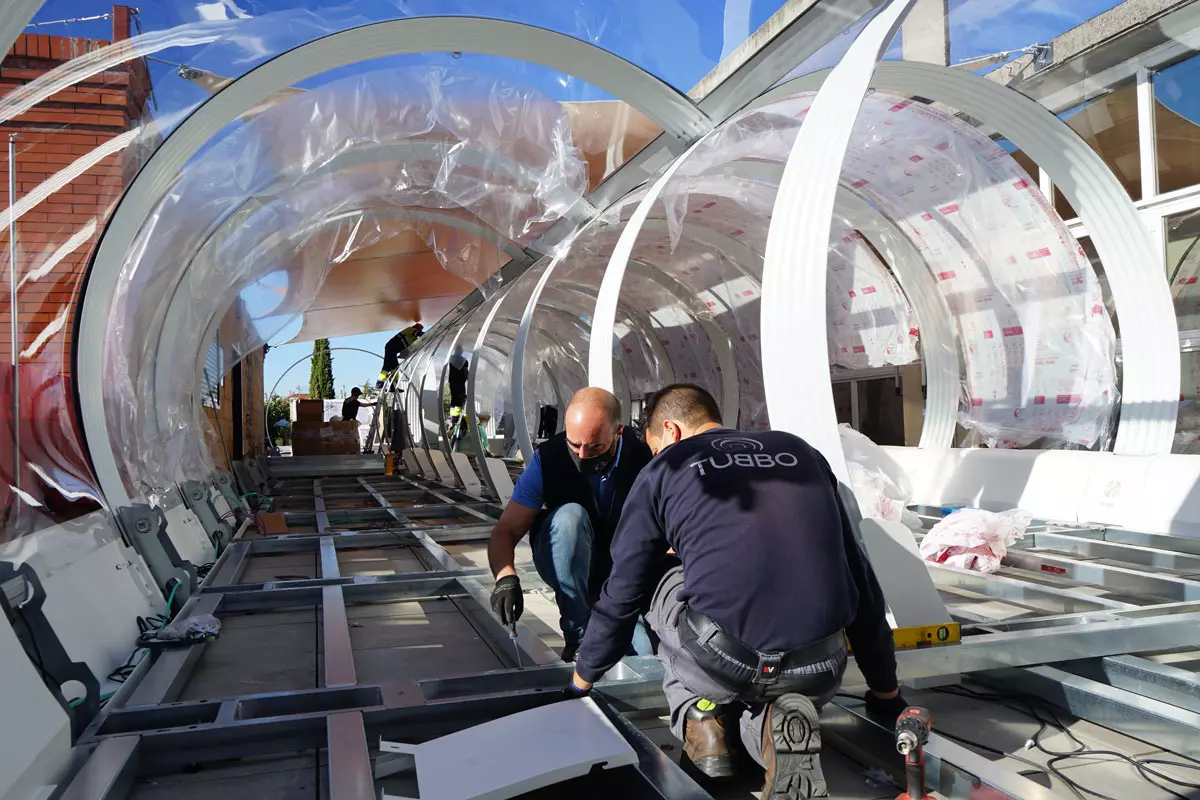

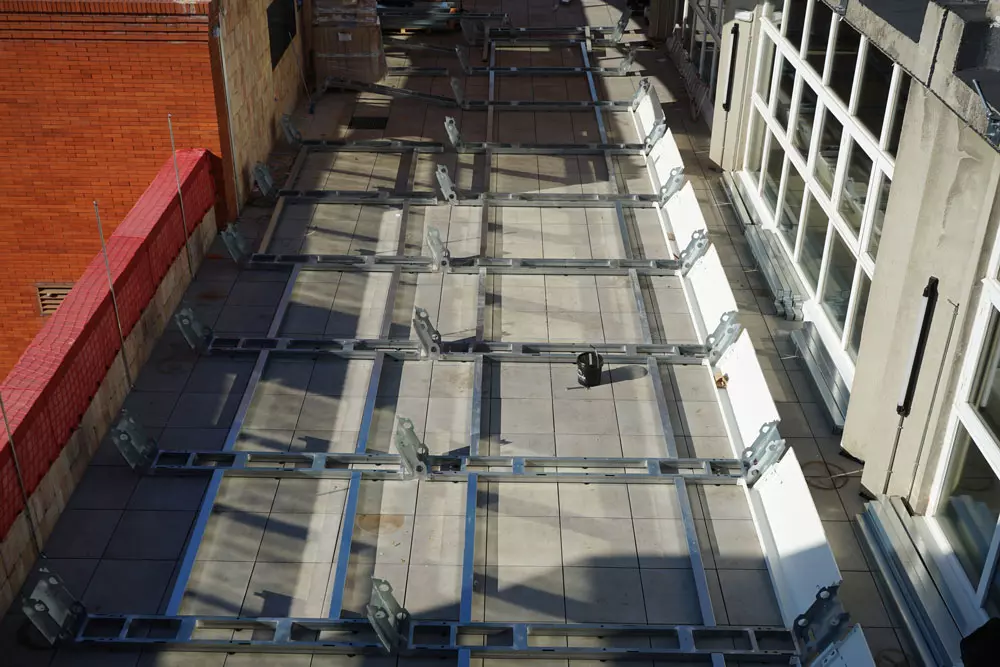

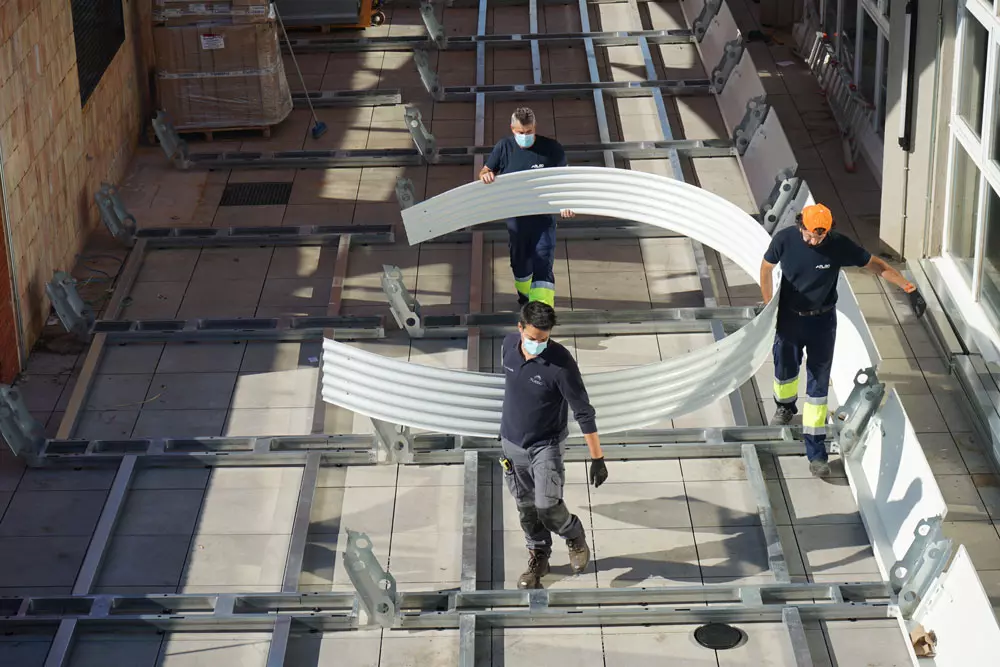

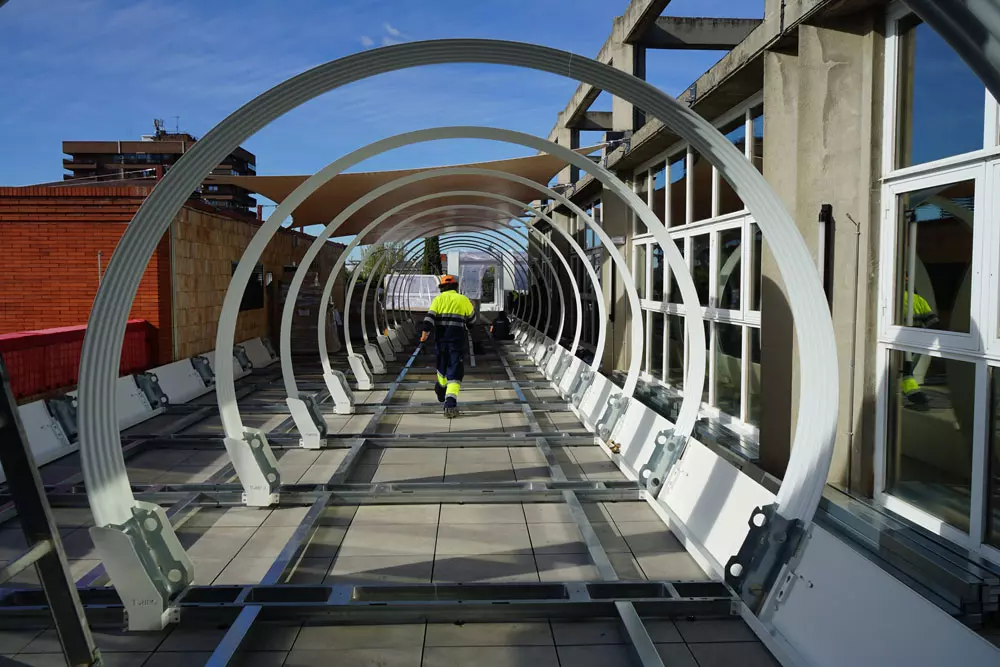

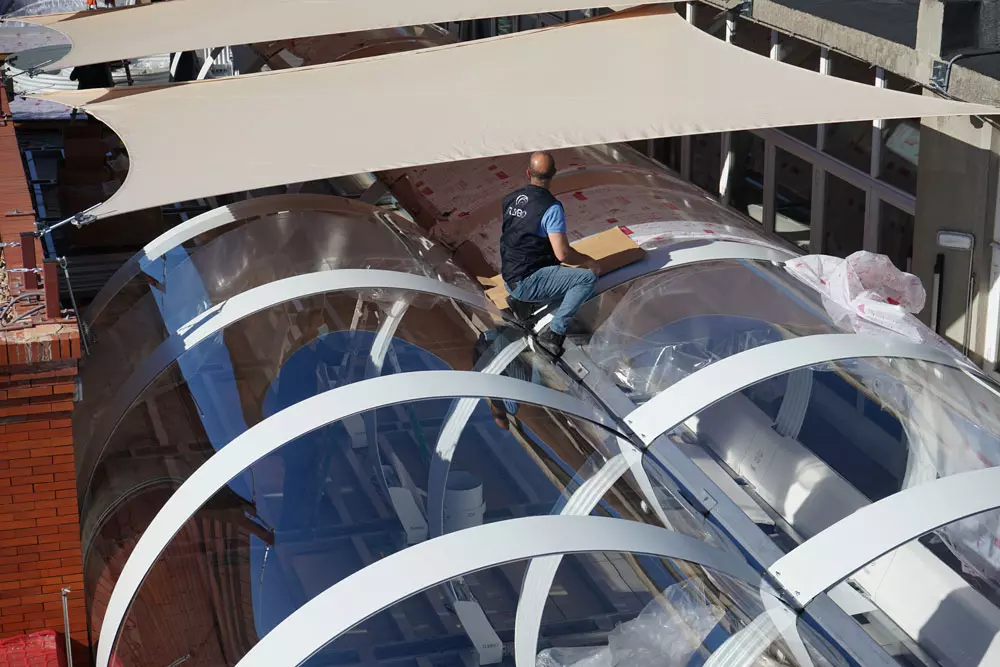

Delivery and Assembly

TUBBO® can be installed and dismantled quickly and easily: no special tools or building work is required.

Estimated delivery time is 4 weeks (subject to stock availability).

Cleaning

We recommend the use of our cleaning kit, with telescopic and angle-adjustable arm, to access 100% of the Tubbo surface, made with materials that do not damage the polycarbonate.

Clean the polycarbonate gently and with little pressure to avoid scratches.

Only use water or water with neutral soap. Do not use detergents or other chemicals.

Warranty

  • Transparent compact polycarbonate: 10 year guarantee against discolouration. 4 mm thick transparent compact polycarbonate sheets in one piece with bulk UV protection. The polycarbonate is certified against fire with a category B-s1-d0 according to EN-13501-1:2007+A1:2009 and EN16240:2013. This warranty does not cover damage to the polycarbonate due to misuse, scratches, cuts or impacts. This same warranty does not cover damage that may occur due to lack of maintenance or neglect.

  • Metal structure: 10-year guarantee against manufacturing defects. The entire metal structure is made of carbon steel with a hot-dip galvanised or painted finish, depending on its position in the assembly. The paint used is certified against fire with a category A2-s1-d0 according to EN-13501-1:2007+A1:2009 and EN16240:2013. This warranty does not cover damage to the structure due to misuse, scratches, cuts or impacts. This warranty also does not cover damage that may occur due to lack of maintenance or neglect.

  • Electronic devices and parts: 2-year warranty against manufacturing defects. All electronic devices and parts (lights, controls, heaters, etc.) that make up the Tubbo structure have a two-year guarantee against any manufacturing defect.

Technical brochure

You can also download this technical brochure:
